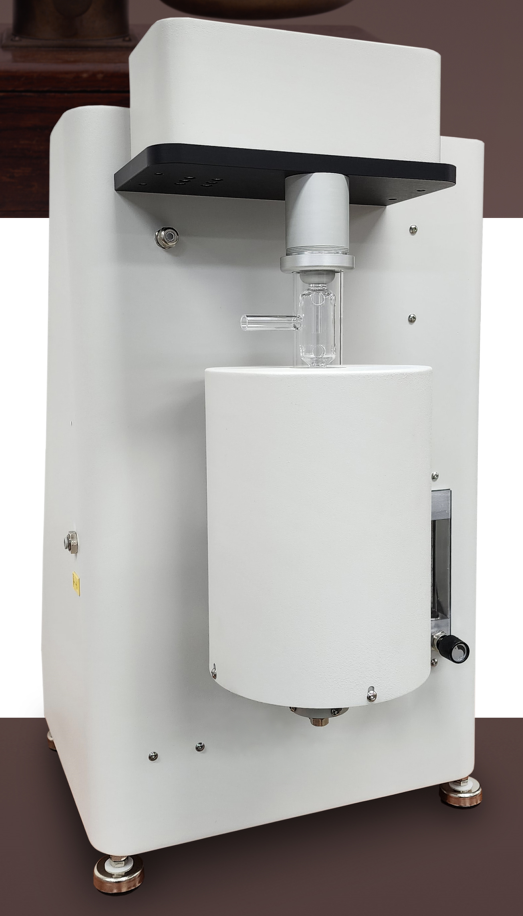

TGA-1000 series
TGA(Thermogravimetric) Analyzer
Thermogravimetric Analyzer
The Thermogravimetric Analyzer(TGA) is the branch of thermal analysis which examines the mass change of a sample as a function of temperature in the scanning mode or as a function of time in the isothermal or scanning mode.
TG test is administered in order to induce a thermal reaction, so that resulting changes in the mass or weight of the tested substance as a result of the reaction may be observed and analyzed.
1500˚C/1200˚C maximum temperature combined with a sample capacity of 200g makes SEO TG 1200/1500 system is deal for analyzing ceramics and metal powder injection molded parts.
Features;
Corrosion resistant Quartz or Alumina reaction chamber
Flexible sample capabilities
Easy to clean reaction chamber
Windows software
Moterized furnace control
SEO TGA software allows method storage and development, automatic calibration and complete range of analysis
High mass (200gram)
High volume
High temperature
Real time & powerful data analysis tools
Gas flow system;

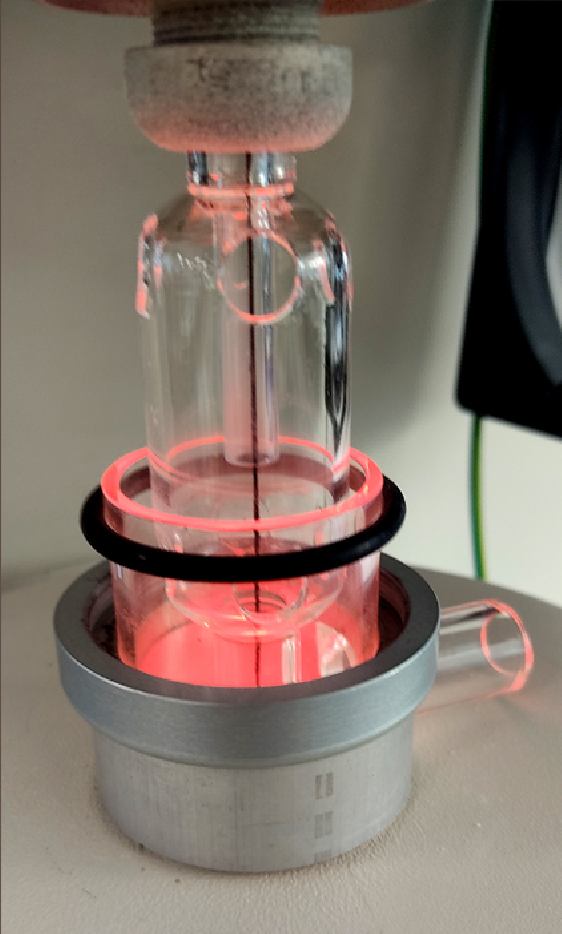

In the gas flow line of the TGA-1200/1500 Series, reactive gas can up-flow method the buoyancy effect of the balance is made into a minimal system. It is a method of controlling the atmosphere by flowing from the bottom of the reaction tube① to the top and flowing up to the top of the reaction tube②
The built-in gas supply unit with solenoid valve for active gases offers optimum control of the atmosphere around the sample.
Applications;
The extreme temperature range and high capacity make it a powerful analysis tool for complete electronic components or any large heterogeneous sample.
Changes in mass due to decomposition, oxidation, evaporation, or combustion
Characterization of Thermal stability
Characterization of Oxidative stability
Moisture and Volatiles Content of Materials
Corrosion studies (e.g. oxidation or reactions with reactive gases)
Gasification processes
Kinetic processes
Software;
For windows operation systems
Multi-tasking for simultaneous measurement and evaluation
Multi-method analysis for curved comparison and evaluation of various methods
Mass change in % or mg
Graphic and data export
Automatic calculation of mass change steps and characteristic temperatures
Extrapolated onset and end set
Peak temperature and value of derivarives
Multi-point calibration
General analysis etc.,
